So much of the internet is made up of pages containing lots of images. Downloading all of these images when the page loads is wasteful, both of the user's time and possibly metered data allowance, especially to download data that they may not see if they end up not viewing that part of the page. It can also make the page slow to interact with, due to the page layout constantly changing as new images load, causing the browser to reprocess the page.

You can easily reserve exactly the right space for the images, but not load them until the reader scrolls to that part of the page, using the loading=lazy attribute. The problem with this is that scrolling quickly through a page will display a lot of blank spaces where the images will be.

A nice way to counteract this drawback is to proactively load low quality image placeholders (LQIP), and then lazy load the full resolution images on demand. This gives the user a nice sense of the colours and shape of the image, and makes the page feel more complete, despite loading only a tiny fraction of the data.

This tutorial will show you how to generate these LQIP with the Compute platform.

Instructions

Initialize a project

If you haven't already created a Rust-based Compute project, run fastly compute init in a new directory in your terminal and follow the prompts to provision a new service using the default Rust starter kit:

$ mkdir image-placeholders && cd image-placeholders
$ fastly compute init

Creating a new Compute project.

Press ^C at any time to quit.

Name: [low-quality-image-placeholders]
Description: A low quality image placeholder (LQIP) generator, at the edge.
Author: My Name
Language:
[1] Rust
[2] JavaScript
[4] Other ('bring your own' Wasm binary)
Choose option: [1]
Starter kit:
[1] Default starter for Rust
    A basic starter kit that demonstrates routing, simple synthetic responses and
    overriding caching rules.
    https://github.com/fastly/compute-starter-kit-rust-default
[2] Beacon termination
    Capture beacon data from the browser, divert beacon request payloads to a log
    endpoint, and avoid putting load on your own infrastructure.
    https://github.com/fastly/compute-starter-kit-rust-beacon-termination
[3] Static content
    Apply performance, security and usability upgrades to static bucket services such as
    Google Cloud Storage or AWS S3.
    https://github.com/fastly/compute-starter-kit-rust-static-content
Choose option or paste git URL: [1]

Configure a backend

After init has completed, you'll have some new files and folders in the working directory.

Your Compute service needs a backend from which it can load your website. When testing the service on your local machine, the backends are defined in the fastly.toml file. For this tutorial, you just need a server that hosts some images. You can use any image source you like; this solution uses images.unsplash.com. Add the following lines to your fastly.toml file:

14 lines


[local_server]
  [local_server.backends]
    [local_server.backends.content_backend]
      url = "https://images.unsplash.com"
      override_host = "images.unsplash.com"

Separately, fastly.toml can store configuration for your production origin. This backend will be created later, on the first run of fastly compute deploy.

8 lines


[setup]
    [backends]
        [setup.backends.content_backend]
            address = "images.unsplash.com"
            port = 443
6 lines



Install dependencies

Add the following dependencies to your Cargo.toml file:

• The image crate, which provides native Rust implementations of image encoding and decoding as well as some basic image manipulation functions.
• blurhash, which is an algorithm that encodes an image into a short (~20-30 byte) ASCII string. When you decode the string back into an image, you get a gradient of colors that represent the original image.

11 lines


image = { version = "0.25.1", default-features = false, features = ["png", "jpeg"] }
blurhash = "0.2.2"

Routing

In the main function of your Compute program, begin by setting up a route for LQIP requests, and forwarding all other requests to the origin:

7 lines


const CONTENT_BACKEND: &str = "content_backend";
48 lines


    match (req.get_method(), req.get_path()) {
        // If the request is a `GET` to the `/lqip/*` path, generate a LQIP.
        (&Method::GET, path) if path.starts_with("/lqip/") => lqip_generator(req),
2 lines


        // Forward all other requests to the content backend.
        _ => Ok(req.send(CONTENT_BACKEND)?),
    }
1 lines



Generating a LQIP from the original image

Now you can deal with any requests to the /lqip/* path in a separate handler.

9 lines


// Generate a LQIP (low-quality image placeholder) from a given image
fn lqip_generator(mut req: Request) -> Result<Response, Error> {
40 lines


}
13 lines



First, retrieve the original image bytes from the origin:

11 lines


    // Strip /lqip from the path.
    let image_path = &req.get_path()[5..].to_owned();
    req.set_path(image_path);

    // Apply any origin-specific transformations to the request.
    req.set_query_str(format!("{}&q=1", &req.get_query_str().unwrap_or("?")));

    // Retrieve the image bytes from the backend response.
    let img_bytes = req.send(CONTENT_BACKEND)?.take_body_bytes();
45 lines



To save bandwidth and processing time, add the q query parameter, which is specific to origin in this tutorial (images.unsplash.com) and determines the quality of the image returned. You don't need a high quality version of the image to generate a blurry placeholder!

Next, decode the image data from the raw byte slices, and determine the width and height of the original image:

2 lines


use image::io::Reader as ImageReader;
use image::{DynamicImage, GenericImageView, ImageBuffer};
use std::io::Cursor;
17 lines


    let img = ImageReader::new(Cursor::new(img_bytes))
        .with_guessed_format()?
        .decode()?;

    // Get the image dimensions.
    let (width, height) = &img.dimensions();
37 lines



Now you can use this data to generate the blurhash for this image.

5 lines


use blurhash::{decode, encode};
24 lines


    let blurhash = encode(4, 3, *width, *height, &img.to_rgba8()).unwrap();
34 lines



The first two arguments of the encode function are integers from 1-9 and represent the number of horizontal and vertical components for the transformation function used in the blurhash algorithm. Lower numbers of components will result in a more blurred placeholder.

Decode the blurhash to generate the image data for the placeholder, using the original width and height:

32 lines


    // Turn the blurhash into an array of pixels for our placeholder image.
    let pixels = decode(&blurhash, *width, *height, 1.0).unwrap();

    // Generate the LQIP.
    let placeholder =
        DynamicImage::ImageRgba8(ImageBuffer::from_vec(*width, *height, pixels).unwrap());
27 lines

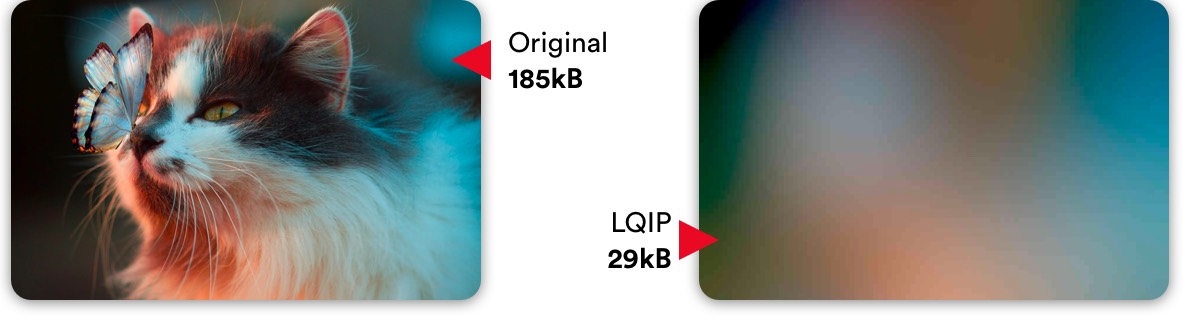

Encode the resulting image data as a highly compressed JPEG (quality 30-50%). The result is a delightful, blurry placeholder of the same dimensions but with a significant size reduction over the original image.

40 lines


    let mut bytes: Cursor<Vec<u8>> = Cursor::new(Vec::new());
    let encoder = image::codecs::jpeg::JpegEncoder::new_with_quality(&mut bytes, 30);
    placeholder.write_with_encoder(encoder)?;
22 lines



Finally, return a response to the client containing the LQIP, along with cache directives and any other data that might be useful (here, we've also included some debug response headers that set the blurhash and image dimensions):

45 lines


    Ok(Response::from_body(bytes.into_inner())
        .with_content_type(mime::IMAGE_JPEG)
        .with_header(header::CACHE_CONTROL, "public, max-age=31536000, immutable")
        .with_header("X-Blurhash", blurhash)
        .with_header("X-Width", format!("{}", width))
        .with_header("X-Height", format!("{}", height)))
14 lines



Setting up the frontend

In order to see the benefit of generating LQIP images, you need a mechanism to load them in your HTML page, and swap them out for full-resolution images on demand.

In practical terms, your image tags will look like this:

<img class="lazy" src="/lqip/photo-cat.jpg" data-src="/photo-cat.jpg" />

The image path that normally goes in the src parameter has been moved to data-src (which can be accessed in JavaScript later), and the LQIP version is now in the src. This will result in the browser loading the small low-quality version of the image by default.

Use the Intersection Observer API to detect when an image enters the viewport. This way, only the images that are actually visible will be loaded over their placeholders.

22 lines


      document.addEventListener("DOMContentLoaded", () => {
        // Set up an intersection observer to detect when images become visible on the viewport.
        const imageObserver = new IntersectionObserver((entries) => {
          entries.forEach((entry) => {
            if (entry.isIntersecting) {
              // Replace the placeholder with the full quality image.
              entry.target.src = entry.target.dataset.src
              // We don't need to observe this element anymore.
              imageObserver.unobserve(entry.target)
            }
          })
        })
        // Loop through all images and observe them.
        document.querySelectorAll("img.lazy").forEach((img) => {
          imageObserver.observe(img)
        })
      })
57 lines



Typically, your origin would handle all requests from the frontend. This tutorial, however, uses images.unsplash.com as a backend – which only serves images. Fortunately, Compute can also serve assets directly from the edge, so you can use that to hack in a single HTML file for now.

Create a new file, src/index.html. After expanding the contents of the code-box above, copy and paste them into your newly created HTML page. Then add a special route inside the main entrypoint of your Compute program:

59 lines


        // If the request is a `GET` to the `/` path, serve a HTML page.
        (&Method::GET, "/") => Ok(Response::new().with_body_text_html(include_str!("index.html"))),
4 lines



Now, for the exciting part!

Testing the Compute service

Congratulations! You should now have a working LQIP generator capable of running at the edge. You can test it locally, using fastly compute serve.

$ fastly compute serve
✓ Initializing...
✓ Verifying package manifest...
✓ Verifying local rust toolchain...
✓ Building package using rust toolchain...
✓ Creating package archive...

SUCCESS: Built package 'low-quality-image-placeholders' (pkg/low-quality-image-placeholders.tar.gz)

✓ Checking latest Viceroy release...
✓ Checking installed Viceroy version...
✓ Running local server...

Jan 26 12:59:20.627  INFO checking if backend 'content_backend' is up
Jan 26 12:59:20.669  INFO backend 'content_backend' is up
Jan 26 12:59:20.669  INFO Listening on http://127.0.0.1:7676

Visit the local server at http://127.0.0.1:7676 and see the LQIP generator in action. It should look similar to this:

When you're ready to deploy your new Compute service, run fastly compute deploy. This will create the content backend and publish the WebAssembly package to Fastly's platform.
